Call for pricing

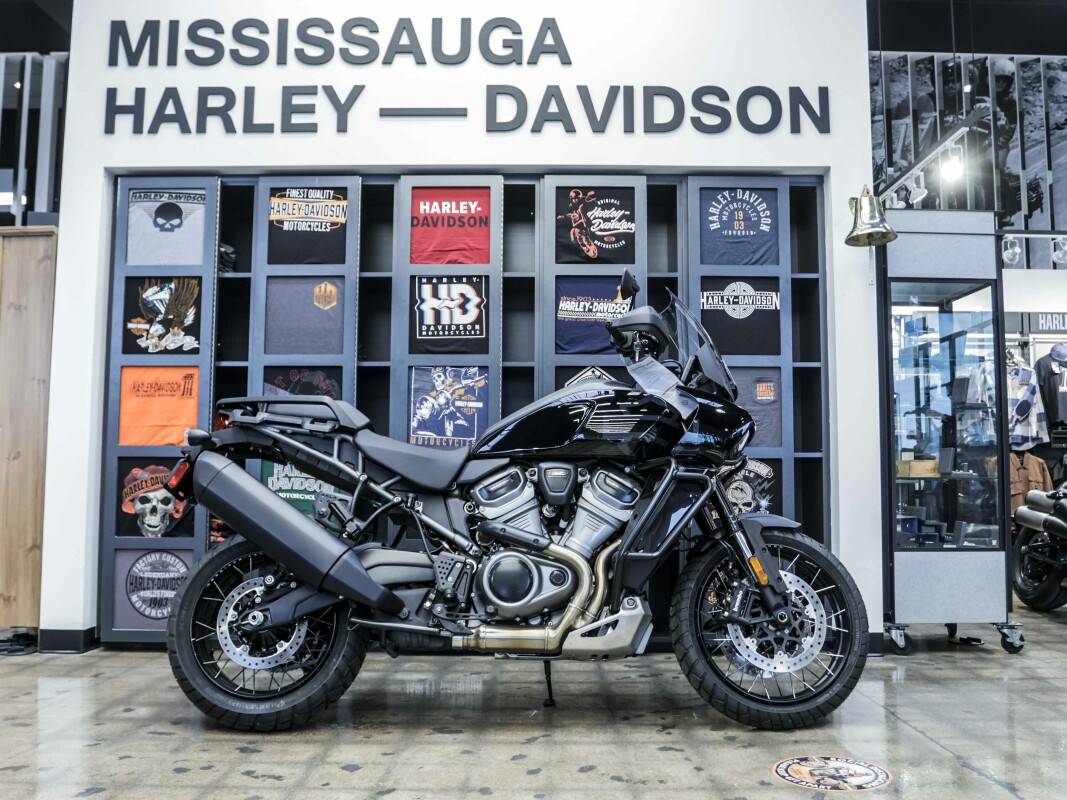

Pan America™ 1250 motorcycle is a two-wheel multi-tool built to endure, designed to explore, and engineered for adventure.
*All of our Harley-Davidson motorcycles are inspected and certified by our Harley-Davidson factory trained technicians*
Ask about Harley-Davidson Certified Pre Owned and the Harley-Davidson Extended Service Plan for your next ride!
Visit our showroom and see our HUGE selection of new and pre owned Harley-Davidson motorcycles at: 5500 Dixie Rd, Unit E, Mississauga, Ontario, L4W. T: 905 858 0966. See our entire inventory at www.mississaugahd.ca. Open Monday through Friday 9:30am to 5:30pm, Saturday 9am to 4pm
| Length: | 2265 mm |
| Ground clearance: | 210 mm |
| Rake (steering head): | 25 |
| Trail: | 108 mm |
| Wheelbase: | 1580 mm |
| Tires, front specifications: | 120/70R19 60V |
| Tires, rear specifications: | 170/60R17 72V |
| Fuel capacity: | 21.2 l |
| Oil capacity: | 3.7 l |
| Weight, as shipped: | 229 kg |
| Weight, in running order: | 244.94 kg |
| Engine: | Revolution® Max 1250 |
| Bore: | 105 mm |
| Stroke: | 72 mm |
| Displacement: | 1252 cm3 |
| Compression ratio: | 13.0:1 |
| Fuel system: | Electronic Sequential Port Fuel Injection (ESPFI) |
| Exhaust: | 2-into-1-into-1; catalyst in header |
| Primary drive: | Gear, 49/89 ratio |
| Gear Ratios (overall) 1st: | 13.11 |
| Gear Ratios (overall) 2nd: | 9.687 |
| Gear Ratios (overall) 3rd: | 7.509 |
| Gear Ratios (overall) 4th: | 6.057 |
| Gear Ratios (overall) 5th: | 5.08 |
| Gear Ratios (overall) 6th: | 4.436 |
| Engine torque testing method: | J1349 |
| Engine torque: | 127 Nm |
| Engine torque (RPM): | 6750 |
| Lean angle, right (deg.): | 42 |
| Lean angle, left (deg.): | 42 |
| Fuel economy testing method: | Estimated City/Hwy |
| Fuel economy: | 5.1 l/100 km |
| Wheels, front type: | Aluminum cast, satin black |
| Wheels, rear type: | Aluminum cast, satin black |
| Brakes, caliper type: | Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper |
| Lights (as per country regulation), Indicator Lamps: | LED Bullet Turn Signals |
| Gauges: | 6.8 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigatio |
| Type: | Color TFT w/ Touch |
| Headset specifications (if equipped): | Bluetooth |
| Voice Recognition Languages: Phone functions only: | Phone dependent |
| Voice Recognition Languages: Tuner / Media / Navigation: | Phone dependent |
| Text-to-Speech (TTS) Languages: | Phone dependent |
| Rider/Passenger Intercom: | Headset function only |
| Vehicle information screen: | Engine temp, Battery Voltage |
| USB: | Charging and Instrument update, USB-C, 5V, 3A |
| Bluetooth: | Phone/Media Supported |
